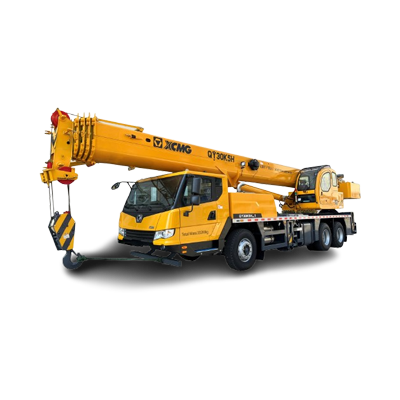

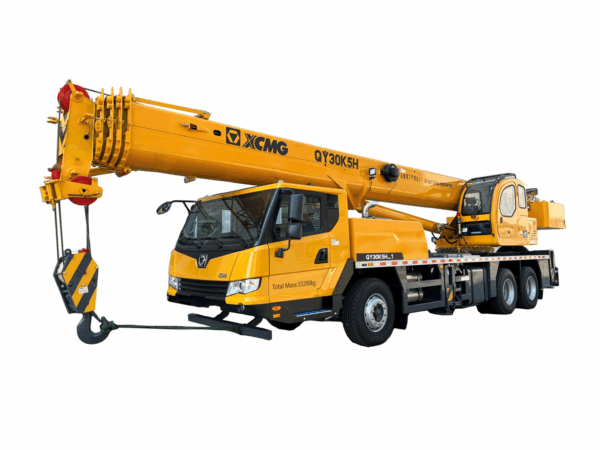

Description
| Technical Specification | |
| Chassis | |
| Frame | Designed and manufactured by XCMG, it is made of high strength steel with fully covered walking surface and anti-torsion box-typed structure. |
| Outriggers | Four outriggers arranged in H-shape are hydraulically controlled by control levers. There is an outrigger control station located at each side of the chassis, and there is a level gauge on each control station. The outrigger movements can be simultaneously or separately controlled at any side of the chassis. A fifth jack is available. Each jack cylinder is equipped with a double-way hydraulic lock. Outrigger float diameter: φ400 mm Reaction force of outrigger at max. lifting load: 323 KN |
| Engine | SC9DF290Q5,in-linesix-cylinder EFI diesel engine, Shanghai Diesel Engine Co., Ltd., max. power 211kW/2200rpm, max. torque 1200Nm/1400rpm, the Euro V emission standards. Fuel tank capacity：320L |
| Tire | – 10 tires and 1 spare tire. Single tire installed on the front axle, dual-tire installed on the middle and rear axles. – Tire specifications: 315/80R22.5(1stxle),12R22.5(2nd and 3rd axle). |
| Braking system | Service brake: dual-circuit air pressure brake, acting on all wheels; – Parking brake: spring applied brake, acting on the wheels of axles 2~3. – Auxiliary brake: engine exhaust brake. |
| Superstructure | |
| Frame | Designed and manufactured by XCMG, made of high strength steel. |
| Hydraulic system | The chassis engine drives the constant displacement gear pump to realize hoisting, luffing and telescoping operations. Load sensing proportional multi-way change valve with impact resistance valve and cavitation-proof valve integrated; air-cooled hydraulic oil radiator.
Oil tank capacity: 420L. |
| Control system | Pilot hydraulic control is used for controlling the superstructure. All crane movements are controlled by the hydraulic pump and proportional valve through two control levers on the left and right sides. |
