| TECHNICAL SPECIFICATION |
|
| Vehicle Brief |

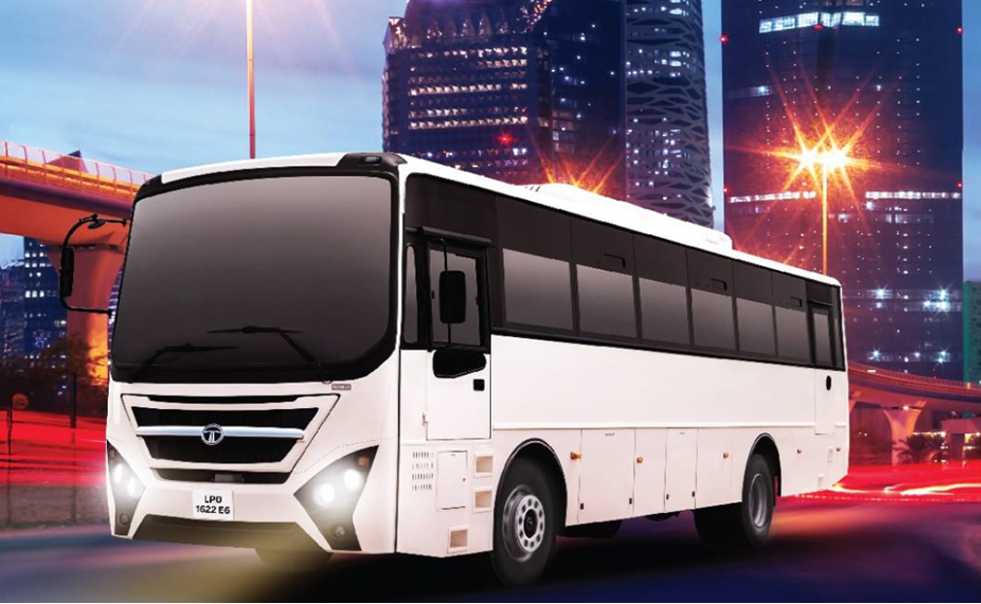

LPO 1622 Euro-6 (Diesel) |
| Engine |
Cummins ISBe 5.6L Euro6 |
| Gear Box |
TATA G-750 with DD, manual 6F+1R |
| Clutch Dia. |
380 mm |
| Brake |
Drum (Front & Rear) |
| Suspension |
Parabolic leaf spring (Front & Rear) |
| Steering |
Tilt and Telescopic (Hydraulic power) |
| Tyre |
295/80 R22.5 -16 PR |
| Applications |
Staff, School |
| Doors |
Front door |
| Seating Configuration |
65+D, 61+D** |
| Overall (L x W x H) |
1380 x 2570 x 3600 mm |
| Wheelbase |
5600 mm |
| GVW |
16200 kg |
| Fuel Tank Capacity |
350 L |
| Max Speed |
107 kmph (Staff), 80 kmph (School) |
| Rated Peak Power |
220 hp @ 2300 RPM |
| Rated Max Torque |
925 Nm @ 1000-1600 RPM |
| Gradeability |
32% |
| Air Condition |
HVAC, 47 KW-with drop-down AC duct |
| Advanced Features |
ABS+ESC, Hill Start Assist, Multimode switch, Gear Shift advisor, Cruise control |
