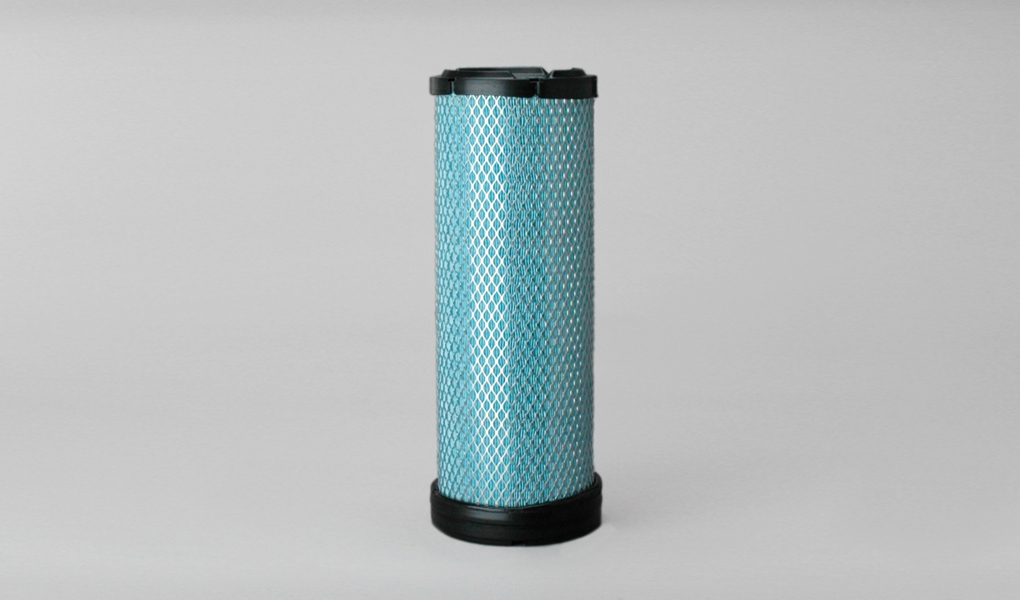

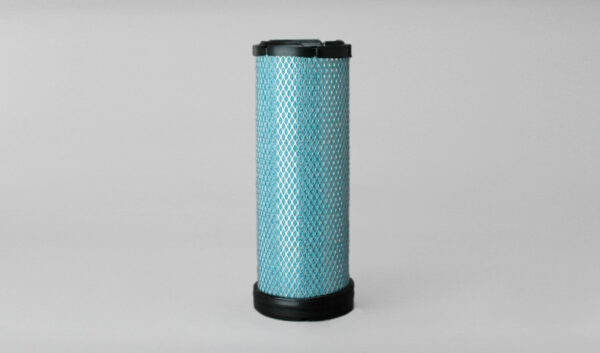

Donaldson – P532504

AIR FILTER, PRIMARY RADIALSEAL

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing.

  • Serve as a backup filter in case of primary filter damage or improper installation.
  • Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.
  • Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue.
  • Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.
Category:

Description

ATTRIBUTES
Outer Diameter 150.9 mm (5.94 inch)
Inner Diameter 109.6 mm (4.31 inch)
Length 391.4 mm (15.41 inch)
Efficiency Test Std ISO 5011
Family FRG
Primary Application CATERPILLAR 6I2504
Type Safety
Style Radialseal
Brand RadialSeal™
Media Type Safety
OTHER INFORMATION
UPC Code 742330038789
