B085046
Donaldson - B085046 - Image 2

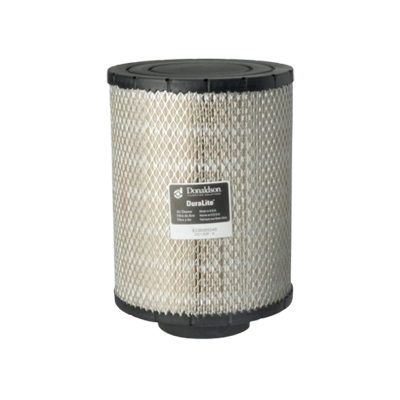

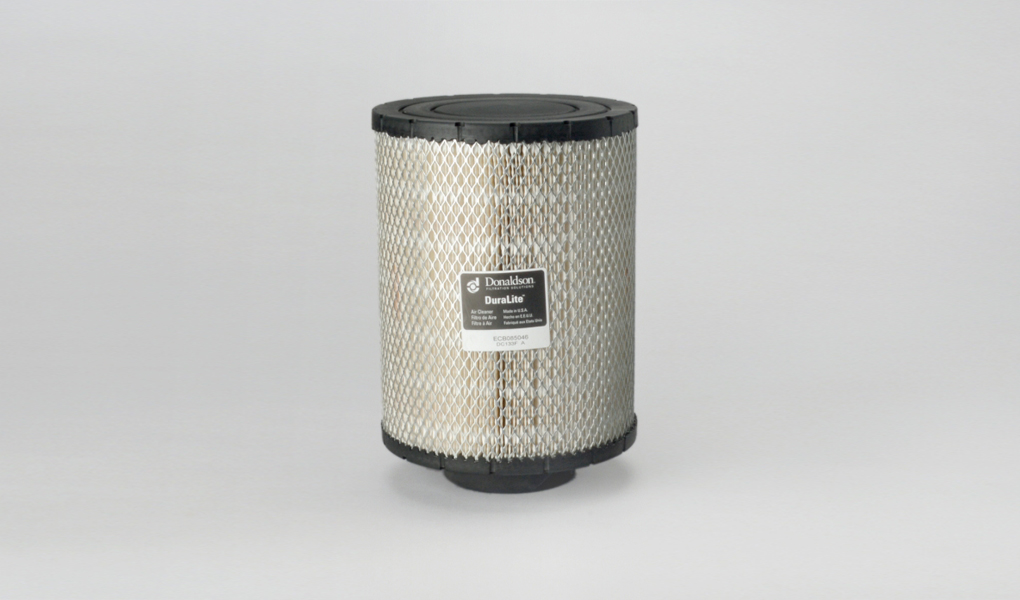

Donaldson – B085046

AIR FILTER, PRIMARY DURALITE

Why Choose Donaldson DuraLite™ Air Cleaners?

Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.

  • Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
  • Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
  • Easy to install, durable, and reliable.
  • Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
Category:

Description

ATTRIBUTES
Outlet Diameter 101.6 mm (4.00 inch)
Body Diameter Maximum 216 mm (8.50 inch)
Body Length 279 mm (10.98 inch)
Efficiency Test Std ISO 5011
Rated Flow LR 7.9 m³/min (279 cfm)
Rated Flow MR 11.3 m³/min (399 cfm)
Rated Flow HR 13.3 m³/min (470 cfm)
Restriction LR 102 mm H2O (4.02 inch H2O)
Restriction MR 152 mm H2O (5.98 inch H2O)
Restriction HR 203 mm H2O (7.99 inch H2O)
Family ECB
Type Primary
Style Round
Brand DuraLite™
Media Type Cellulose
OTHER INFORMATION
UPC Code 742330000533
